All long- distance reception of broadcasts, and those whose imaginations have placed them in the class with world champions, now can retire from the limelight. Walter Rodman Pierce, Jr., a 17- year old boy of Saunderstown, Rhode Island, seems to have all the other known DX artists backed completely off the boards with a record of 694 stations in 41 countries.

When Pierce's friend and brother "ham," Franklin B. Rowell (1AMU) of Pawtucket, told me at a recent New England convention of the American Radio Relay League that Pierce was receiving broadcasts from Japan, the Philippines, Australia and other countries in all parts of the world, on two tubes, it sounded like the result of a superheated imagination. -But Pierce appeared to be an honest young man; and he gave me from memory the call letters and locations of so many stations that he said he had logged, that I knew he must have either heard most of them many times or else spent most of his time memorizing the call books.

He said that he had letters and cards from many of these stations, verifying his reception. Still, his record was so remarkable, so nearly incredible, that I decided to visit his home and see the evidence before making any unqualified statement.

Several months later I visited Saunderstown. Pierce's home, I found, was a farm back in the woods. A grocer on the highway took me over in his truck. I talked Walter Pierce going over his ground connections, a pictorial diagram of which is shown on the following page with him and with members of the boys family while I waited for the boy to come home from school. The house is in a good radio location, on a hill that rises west of Narragansett Bay, opposite Newport.

Pierce's receiver is a Radiola III, a two-tube set which was well known a few years ago, but which is now entirely off the market. He had the little set on a table in the living room; it was hooked up to three dry cells and two 45 -volt "B" batteries. He was using tubes of the 199 type, with adapters, instead of the WD -11 type for which the set was designed.

ELABORATE GROUND SYSTEM

From the looks of the outfit, I would have said that New York would have been DX for it; but outside the window there was something unusual. The wire that led from the ground connection on the receiver out through the window ended at a binding post on a porcelain base. From this post twelve wires led to the same number of pipes or other pieces of metal embedded in the ground (see Fig. 1). Pierce said that he found that each new ground connection increased selectivity and reduced the effect of body capacity; so he added one after another.

A leaky automobile radiator was sunk in the ground, at the end of the row of pipes, with its cap just above the surface so that water could be poured into it. Circumstances alter cases. On a car, that radiator could only have inspired profanity; here it was an ideal device for keeping the ground connections wet. The ground clamps on the pipes were bright. Pierce said that he put on new ones every few weeks. It became evident that his phenomenal record was not the result of accident.

The aerial is 110 feet long and 26 feet high; it points N. N. E., with the set at the southerly end. Two glass insulators in series at each end prevented the escape of energy. The wire was of bare copper which, Pierce said, gives better results than tinned copper. He puts up new wire to replace the old every few months, or as soon as corrosion becomes noticeable. The aerial is kept taut, to prevent swinging.

ACROSS THE OCEANS

It was still daylight, though late in the afternoon, when I sat down at the receiver. As soon as the tongue of the rheostat touched the first turn of wire, a station jumped at me. So many came in as I turned the knob that I advanced it only an eighth of the way to the maximum setting. These stations were within a radius of about 200 miles.

Pierce took charge of the set and turned the rheostat knob to the maximum position. There was another rheostat at the batteries, adjusted so that it was impossible to injure the tubes by turning the one at the set too far. Almost immediately he brought in 2L0, London, England!

When we tired of tuning in stations, we took off the phones and cut in the loud speaker, an ordinary low-priced horn. Providence and New York stations came in with volume enough to fill the room and be heard anywhere in the house. Like his phones, his loud speaker is a standard device, of a kind sold in most radio shops. There is not a piece of apparatus in the whole outfit that is of special design or expensive. Pierce is a farm boy, attending high school, and has little money to spend on luxuries. He said he had used the same "B" batteries for two years:

After a night's rest, we rose at early dawn and went back to the set to listen for stations on the other side of the earth. Station 1YA, Auckland; New Zealand, was one of the first to come in. The carrier wave was strong, but the music and announcements were weak. An orchestra was playing. When it stopped, the announcement "1YA, Auckland Station," was heard. This was between 5:35 and 5:37 A.M., Eastern Standard Time, on November 1, 1927. The announcement was logged again at 5:45.

A number of stations in the antipodes, including JOCK, Nagoya, and JOAK (no joke!), Tokyo, Japan, and 2YA, Wellington, New Zealand, were recognized by their carrier waves. The average broadcast listener may doubt the ability of any person to identify stations by the sounds of their carrier waves; but some may have discovered, as Pierce did, that it can be done. For two years he has operated his set several hours a day, fishing for distant stations. He knows his dials as a navigator knows his compass. He knows the schedules of many of the broadcast stations. He can start at zero on the dial scale and tell what station he is going to bring in at each mark, and between the marks. While a station 10,000 miles away was coming in near 4 on the scale, WGY, Schenectady, was working on a wavelength very near it. Pierce separated them, and after seeing him do it, I did. His set increased its selectivity as he added extra ground wires and, as his mother says, he can "adjust the tuning lever to the sixteenth of a hair's breadth."

CONVINCING EVIDENCE

Pierce has more convincing evidence of his achievements in world -wide broadcast reception than the testimony of a visitor. When he hears enough of a program to tell definitely whether the number was a piano solo, an orchestral selection or something else, he writes to the station to secure confirmation of the record in his log. Some of the stations are so far away that four months elapse before the reply comes back. Among the letters and cards that he showed me were some from LOX, Buenos Aires, Argentina; 4QG, Brisbane, Australia; SCL, Adelaide, Australia; KGBU, Ketchikan, Alaska; CZE, Mexico City; HHK, Port au Prince, Haiti. Several English stations answered his letters, but their replies were somewhat indefinite.

He has many verifications from stations in the United States and Canada, from coast to coast, but he considers nothing as real DX except reception from another continent or its islands.

SOME OF THE FOREIGN STATIONS

Among the stations outside of the United States and Canada that Pierce has logged, many of them several times, are:

Mexico: CYX, CZE, CYJ, CZI, CYO, CYB, CYH, Mexico City; CYS, Monterey; CYY, Merida; ME, Tampico; FAM, Guadalajara; CYR, Mazatlan; CYU, Puebla; CYQ, Tampico.

Cuba: PWX, 2BB, 2EP, 2HC, 21IP, 20K, 2RK, 2TW, Havana; 7SR, Central Elia; 6KW, Tuinucu (this station came in louder than any other that Pierce ever received. On Dec. 30, 1926, he thought it was going to burn out his loud speaker); 8JQ, Santiago de Cuba; 6HS, Santa Clara; 7B Y, Camaguey.

Haiti: HHK, Port au Prince. Central America: AQM, San Salvador. South America: CMAC, Santiago, Chile; SQIG, Sao Paulo, Brazil; AYRE, Caracas, Venezuela; CBC, Santiago, Chile; OAX, Lima, Peru; LOX, Buenos Aires, Argentina; CMAT, Tacna, Chile; CWOZ, Montevideo, Uruguay; Pernambuco, Brazil; LOP, Buenos Aires, Argentina; LOS, Buenos Aires, Argentina; CWOR, Montevideo, Uruguay; CNA, Valparaiso, Chile; Rio Janeiro, Brazil (no call letters announced); LOY, Buenos Aires, Argentina; LOV, Buenos Aires, Argentina; CMAB, Santiago, Chile; SPE, Rio de Janeiro, Brazil; LOU, Mendoza, Argentina; LOZ, Buenos Aires, Argentina; LOR, Buenos Aires, Argentina; LOT, Buenos Aires, Argentina; CWOS, Montevideo, Uruguay.

Greenland: OGG., Godthaaven.
Iceland: Reykjavik.
Alaska: KGBU, Ketchikan; KFQD, Anchorage Europe: 2L0, London; EAJ3, Cadiz, Spain; IMI, Milan, Italy; SPY, Plymouth, England; Skattudden, Finland; Oslo, Norway ; Berne, Switzerland; EAJ7, Madrid, Spain; SRB, Brussels, Belgium; FPTT, Paris, France; 2ZY, Manchester, England; 5SC, Glasgow, Scotland; SIT, Birmingham, England; SNO, Newcastle, England; EAJ1, Barcelona, Spain; LL, Paris, France; LA, Langenberg, Germany; 2RN, Dublin, Ireland; EAJ4, Madrid, Spain; EAJ12, Oviedo, Spain; Stuttgart, Germany; EAJ2, Madrid, Spain; EAJ22, Salamanca, Spain (this was the loudest European station heard) ; HA, Hamburg, Germany; PTT, Toulouse, France; INA, Naples, Italy; 6CK, Cork, Ireland; Copenhagen, Denmark; EAJ13, Barcelona, Spain; Bordeaux, France; EAJ25, Malaga, Spain.

Africa: Senegal, West Africa; WAMG, Cape Town, South Africa; Radio Casa Blanca, Morocco.
Asia: KZUY, Baguio, Philippine Islands; JOAN, Tokio, Japan; JOCK, Nagoya, Japan; JOBN, Osaka, Japan; JODK, Keijo, Japan; KZRQ, Manila, Philippine Islands; 1SE, Singapore (reception uncertain); NRC, Shanghai, China; 5 - N, Hongkong, China; 7CA, Calcutta, India; KZRM, Manila, Philippine Islands; XOL, Tientsin, China.

Australasia: 2BL, Sydney, Australia; 5CL, Adelaide, Australia; 4QG, Brisbane, Australia; 3L0,' Melbourne, Australia; 4YA, Dunedin, New Zea land; 3AR, Melbourne, Australia; 2FC, Sydney, Australia; 1YA, Auckland, New Zealand; 4RN, Rockhampton, Australia; 2KY, Sydney, Australia; 2YA, Wellington, New Zealand; 3YA, Christchurch, New Zealand; 5DN, Adelaide, Australia. Hawaii: KGU, Honolulu. Pierce logged Australian stations every month in 1927. They and others in the antipodes came in best about 4.30 to 5 o'clock in the morning, when he had to get up to do the milking and other- chores. European stations were best from 4.30 to 7 P. M., and South American stations from 5 to 11 P. M.

THE BEST RADIO NIGHT

During the evening of March 13, 1927, Pierce startled his family by loud whoops of joy. It was one of those rare nights when radio was at its best. He logged the following: KGU, Honolulu; KGBU, Alaska; AGM, San Salvador, Central America; CNAD, CMAT and CMAB in Chile; LOX, LOZ, LOV, LOP and LOY in Argentina; EAJ22, Spain; SQLG, Brazil; Rio de Janeiro, Brazil (no call letters announced) ; CWOZ, Uruguay; OAX, Peru; Durban, South Africa; CYR and CYU in Mexico and PWX, Havana.

Pacific coast stations in the United States came in almost as easily as those near home. Unidentified foreign stations came in on 345, 288 and 307 meters.

Pierce's radio log, kept with painstaking care for two years, will convince anyone who examines it that it is an authentic record. Many of his records are verified by letters or cards from the stations heard. And there is other evidence almost as strong, or perhaps stronger.

---

Providence Journal August 12, 1914

Pawtucket Times August 12, 1914

Providence Journal October 23, 1914

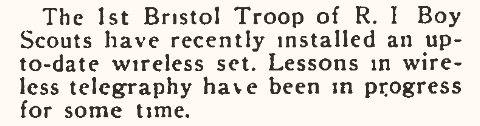

Bristol Phoenix January 29, 1915

Providence Journal August 3, 1921

Wireless Age January 1922

Click to enlarge Providence Journal January 22, 1922

Bristol Phoenix February 21, 1922

The Wireless Age April 1922

Radio Worls September 23, 1922

Radio World December 16, 1922

Radio Digest March 10, 1923

Click to enlarge Providence Journal June 3, 1923

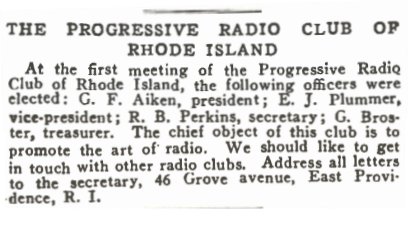

Radio News October 1923

Wireless Age October 1923

Click to enlarge Providence Journal November 11, 1923.

Providence Journal January 9th, 1924

Providence Journal January 17th, 1924

Click to enlarge Providence Journal January 20, 1924.

Click to enlarge Providence Journal January 23, 1924.

Providence Journal January 25, 1924.

Click to enlarge Providence Journal January 27, 1924.

Click to enlarge Providence Journal February 3, 1924

The Palm Beach Post March 1, 1924

Pawtucket Times March 1, 1924

Click to enlarge Radio Digest March 1, 1924.

Click to enlarge Radio Digest July 26, 1924.

The Palm Beach Post March 9, 1924

Pawtucket Times March 15, 1924

Click to enlarge Providence Journal March 18, 1924

Click to enlarge Providence Journal March 21, 1924

Click to enlarge Providence Journal March 23, 1924

Pawtucket Times March 26, 1924.

Pawtucket Times Apri l8, 1924.

Click to enlarge Providence Journal April 27, 1924.

Click to enlarge Providence Journal June 15, 1924.

Popular Radio August, 1924

Radio World October 4, 1924

Click to enlarge Providence Journal November 26, 1924.

Pawtucket Times December 1, 1924

Providence Journal December 15, 1924

Radio Age January 1925

Radio Age February 1925

Click to enlarge Modern Radio Reception Leutz 1925.

Pawtucket Times March 16, 1925

Providence Journal March 21, 1925.

Click to enlarge Providence Journal March 29, 1925.

Click to enlarge Providence Journal April 9, 1925.

Click to enlarge Providence Journal January 24, 1926

Radio World June 26, 1926

Click to enlarge Providence Journal July 25, 1926.

Radio World August 14, 1926

Providence Journal September 18, 1926

Providence Journal September 26, 1926

Radio Digest March 1, 1927

Radio World July 2, 1927

Radio Broadcast August 1927

Providence Journal November 1, 1927.

Click to enlarge Pawtucket Times December 6, 1927

Popular Radio March, 1928

Click to enlarge Providence Journal March 25, 1928.

Click to enlarge Shamokin News Dispatch May 21, 1928.

Providence January 29, 1929

Providence Journal January 31, 1929

Providence Journal September 8, 1929

Pawtucket Times December 16, 1929

Woonsocket Call July 13, 1931

Pawtucket Times November 29, 1943 (November 28, 1923)

---

THE RHODE ISLAND CENTURY: 1920-1930 Radio days began in Roaring Twenties KEN MINGIS Journal Staff Writer, Povidence Journal, April 25, 1999 At first, about the only thing radio offered the Roaring Twenties was the roar of static. That began to change as stations across the nation began broadcasting. Among the early arrivals: two radio stations in Rhode Island, WEAN and WJAR, both of which went on the air within months of each other in 1922. Among the first thing they did was advertise radios for local department stores, according to Linda Eppich, chief curator at the Rhode Island Historical Society. The premise was simple: If you want to sell radios, give people something to listen to. "These three stations, including WPRO (which opened in 1926) were owned by retail stores who bought them for the sole purpose of selling the new radios," Eppich said. Within a few years, radio was sweeping the nation, offering people an even more immediate connection with the rest of the world than they could get from movies or reading a newspaper. In Hollywood, film studios cranked out silent movies and a star named Rudolph Valentino emerged as the Leo DiCaprio of the day. Telephones were appearing in most every household, but as the decade began, only a handful of people in America had a radio, and it was usually a primitive crystal-tuned affair that required headphones and a lot of patience. By the time Charles Lindbergh crossed the Atlantic in May 1927, radio was a staple of the American news diet, and was rapidly becoming more than an ad venue for local stores. Stations by then were broadcasting live music, although they would not be allowed to play recorded music until the mid-30s (at the instigation of a young crooner named Bing Crosby). And they were fighting each other to be the first with news headlines and updates. From the start, Eppich said, Rhode Island was among the leaders in embracing the technology. "For a small state we had so many stations early," Eppich said. "We think of New Jersey and New York being the biggest, and here's a state that had less than half a million people in 1922 and we had four stations." As the decade rolled on, Rhode Islanders found more powerful radios on store shelves, Eppich said, including a line of radios made by the Royal Radio Company, in Providence. It was called a "Polle Royal." To listen in, you had to plug in earphones, and it helped to live close to the station, which was often set up in quarters on top of the department store that financed it, Eppich said. "They really were primitive conditions, with WPRO putting a Quonset hut on top of Cherry & Webb," she said. "WEAN was owned by the Shepard Company and WJAR was owned by the Outlet." (In the early days, WPRO actually shared a frequency with another station, WPAW, Eppich said. "It probably didn't reach past Benefit Street. You couldn't really call it a commercial broadcast." WPRO finally went out on its own in 1931.) Then came the networks, with WJAR the first to join up. After only a year or so in operation, it became a network affiliate of NBC. That move, mirrored elsewhere in the nation, would lead to the explosion in radio broadcasting that took place in the 1930s, when radio boosted the popularity of Big Band music and allowed a man few people had heard of in 1929 to make the medium his own with what would be known as Fireside Chats.

---
